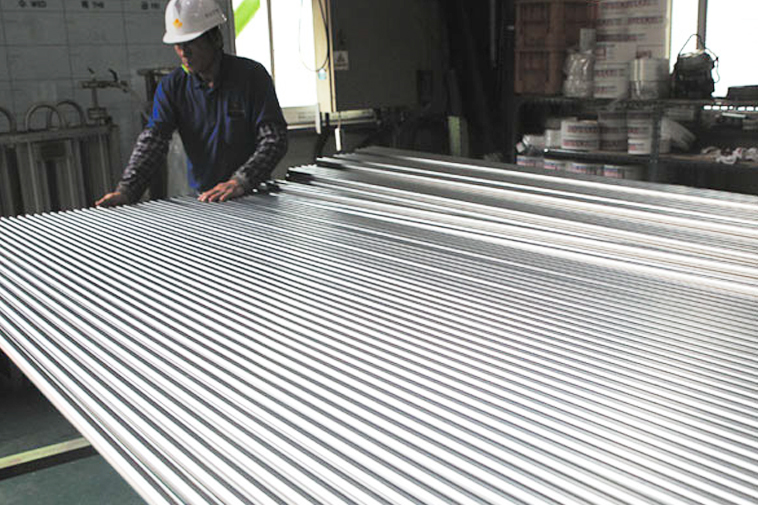

Instrument/ Measuring Tube
-
Instrument/ Measuring Tube
-
Instrument/ Measuring Tube
-
Instrument/ Measuring Tube
-
Cobalt 0.05% Stainless steel
-
Nuclear tube
Handling Steel Grade
| First factory |
Stainless Steel |
Austenitic |
304/304L, 304N, 304LN, 304H, 316/316L, 316N, 316LN, 316Ti, 310S, 321/321H, 317L, 347/347H |
| Martensitic |
410S, 420J2, 440B |
| Duplex |
S31803, S32205, S32750 |
| Alloy Steel |
Corrosion Resistivity Alloy Steel |
TITANIUM GR.2, ALLOY 200, ALLOY 201, ALLOY 400, ALLOY K-500, 904L, ALLOY C-276, ALLOY 20, ALLOY C-4, ALLOY 22, UNS 30825, S31002 |
| Heat Resisting Alloy Steel |
ALLOY 600, ALLOY 601, ALLOY 310S |
| High Temperature/ High Strength Alloy Steel |
ALLOY 600H, ALLOY 601H, ALLOY 800H, ALLOY 800HT |
Applied Standard
ASTM, ASME, AISI, DIN, JIS, KS
Applied Area
- Power Plant
- Car
- Chemical Plant Industry
- Ocean Drilling Vessel
- Food Hygiene
- Submarine optical communication cable
- Ocean Special Vessel
Producible Standard
outside : 3.17mm (1/8") ~ 50.8mm (2")
Thickness : 0.1mm (0.004") ~ 2.77mm (0.11")
TUBE (Production Standard)
| Matric(mm) |
Inch |
Weight |
| O.D |
W.T |
O.D |
W.T |
kg/Mtr |
| 0.508 |
0.127 |
1/50 |
0.005 |
0.0012 |
| 0.794 |
0.203 |
1/32 |
0.008 |
0.0030 |
| 1.587 |
0.254 |
1/16 |
0.01 |
0.0085 |
| 3.175 |
0.508 |
1/8 |
0.02 |
0.034 |
| 4.175 |
0.711 |
1/8 |
0.028 |
0.044 |
| 4 |
1 |
|
|
0.075 |
| 4.76 |
0.711 |
1/4 |
0.028 |
0.072 |
| 6 |
1 |
|
|
0.125 |
| 6.35 |
0.711 |
1/4 |
0.028 |
0.101 |
| 6.32 |
0.89 |
1/4 |
0.035 |
0.122 |
| 6.35 |
1.24 |
1/4 |
0.049 |
0.159 |
| 6.35 |
1.65 |
1/4 |
0.065 |
0.194 |
| 7.93 |
0.89 |
5/16 |
0.035 |
0.157 |
| 8 |
0.8 |
|
|
0.144 |
| 8 |
1 |
|
|
0.175 |
| 8 |
1.2 |
|
|
0.205 |
| 8 |
1.5 |
|
|
0.244 |
| 9.53 |
0.89 |
3/8 |
0.035 |
0.193 |
| 9.53 |
1.24 |
3/8 |
0.049 |
0.258 |
| 9.53 |
1.65 |
3/8 |
0.065 |
0.326 |
| 10 |
1 |
|
|
0.226 |
| 10 |
1.2 |
|
|
0.265 |
| 10 |
1.5 |
|
|
0.320 |
| Matric(mm) |
Inch |
Weight |
| O.D |
W.T |
O.D |
W.T |
kg/Mtr |
| 10 |
2 |
|
|
0.401 |
| 12 |
1 |
|
|
0.276 |
| 12 |
1.2 |
|
|
0.325 |
| 12 |
1.5 |
|
|
0.395 |
| 12 |
2 |
|
|
0.501 |
| 12.7 |
0.89 |
1/2 |
0.035 |
0.264 |
| 12.7 |
1.24 |
1/2 |
0.049 |
0.356 |
| 12.7 |
1.65 |
1/2 |
0.065 |
0.457 |
| 12.7 |
2.11 |
1/2 |
0.083 |
0.560 |
| 14 |
1.5 |
|
|
0.470 |
| 14.28 |
1.24 |
9/16 |
0.049 |
0.405 |
| 15 |
1.5 |
|
|
0.508 |
| 15 |
2 |
|
|
0.652 |
| 15.88 |
1.24 |
5/8 |
0.049 |
0.455 |
| 15.88 |
1.65 |
5/8 |
0.065 |
0.589 |
| 18 |
1.5 |
|
|
0.620 |
| 18 |
2 |
|
|
0.802 |
| 19.05 |
1.24 |
3/4 |
0.049 |
0.554 |
| 19.05 |
1.65 |
3/4 |
0.065 |
0.720 |
| 19.05 |
2.11 |
3/4 |
0.083 |
0.986 |
| 19.05 |
2.77 |
3/4 |
0.109 |
1.131 |
| 25.4 |
1.65 |
1 |
0.065 |
0.982 |
| 25.4 |
2.11 |
1 |
0.083 |
1.232 |
※ Other sized can be produced by order except above Specification
※ Precision Allowance and Special product can be producible
